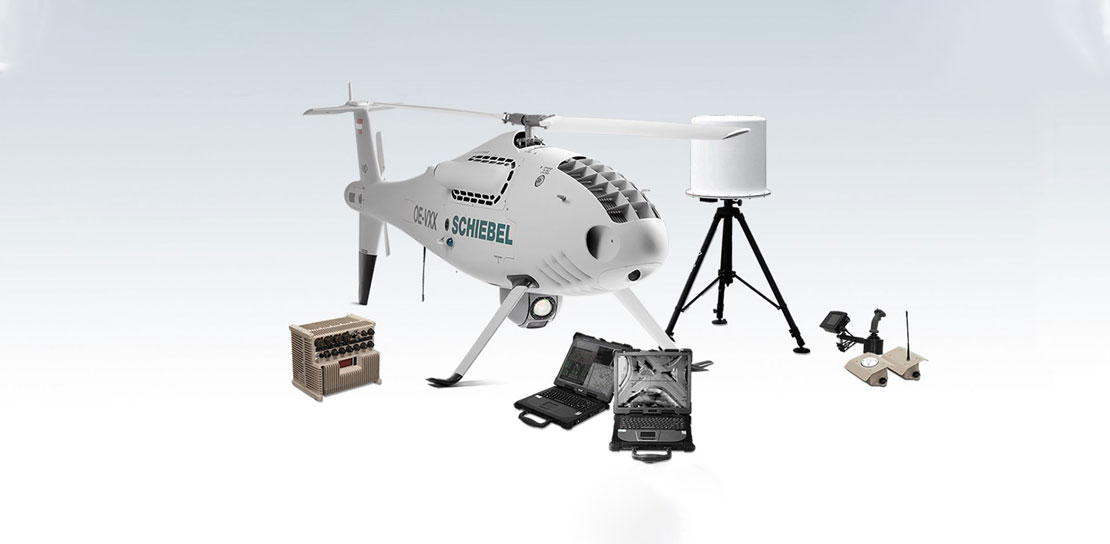

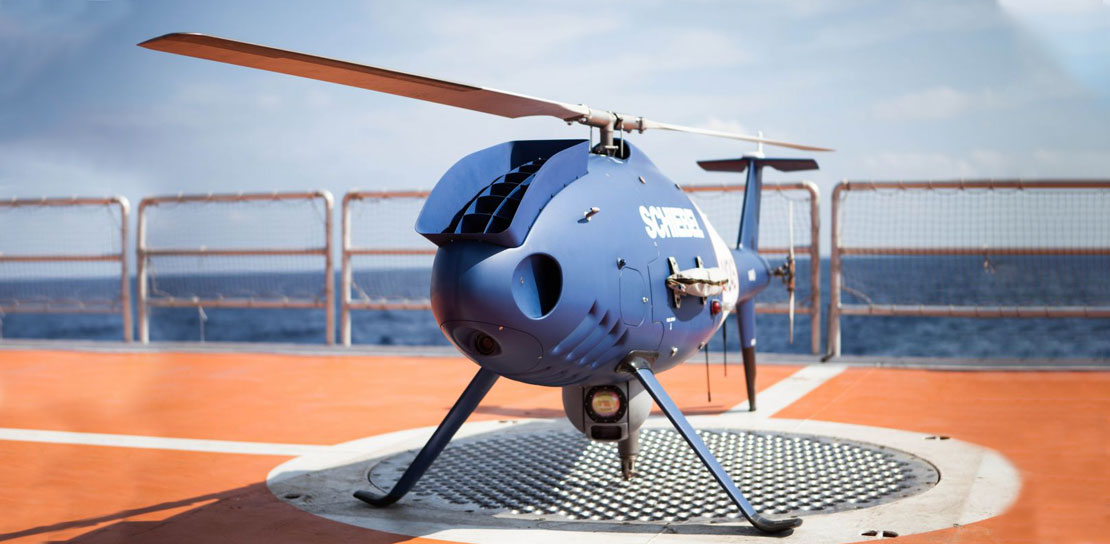

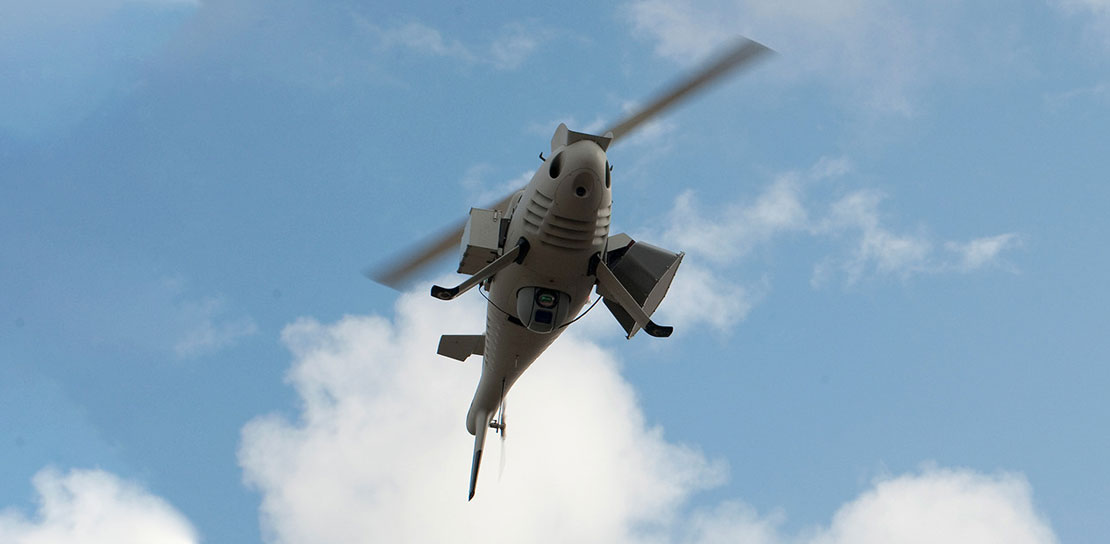

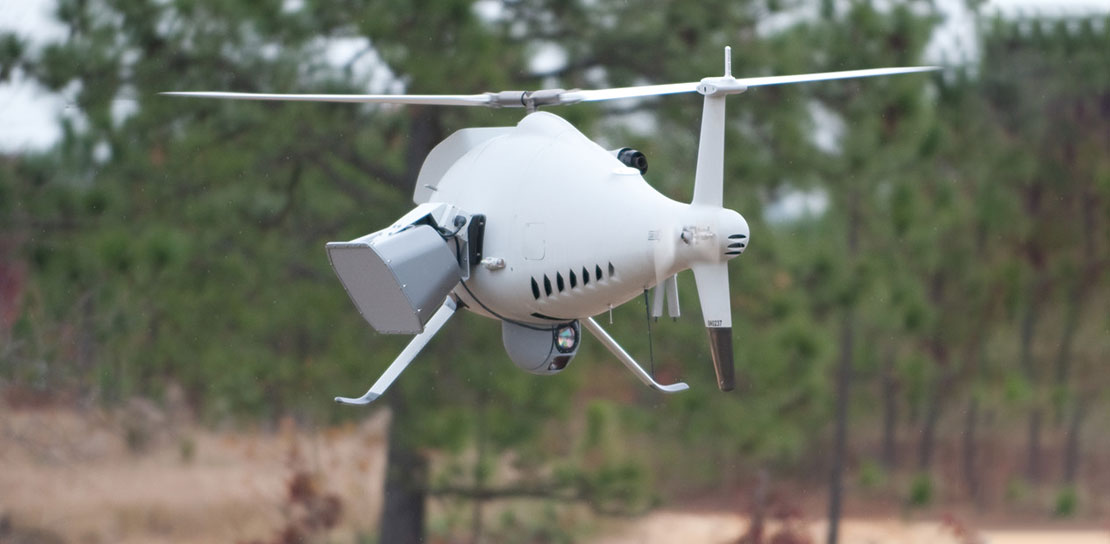

Schiebel Camcopter S-100

Type: VTOL

Specifications are subject to verification and should not be taken as a definitive representation.

Year of Manufacture
2020
Total Number of Hours
-
Endurance
10 hours
Mission Type
Multi-Role

1.1 UAV Details

Condition
New
Type
VTOL
Mission Type
Multi-Role
OEM
Schiebel
Model
Camcopter S-100
Year of Manufacture
2020

1.2 Basic Characteristics

Max. Take Off Weight
200 kg (440 lbs)
Max. Payload
50 kg (110 lbs)
Endurance
10 hours
Take off and Landing
Fully Automatic
Ground Landing Equipment
Required
Maximum Cruise Speed
55 kn
Maximum Speed
130 kn (240 km/h) IAS
Length
3110 mm (122“)
Main Rotor Diameter
3400 mm (133.9”)
Height
1120 mm (44“)
Fuel Tank Capacity
57 L (15.5 gal) AVGas 100 LL
Practical Range
50, 100 or 200 km (27, 54 or 108 nm)
Practical Ceiling
Up to 18000 feet
Landing System
Skid

Engine

Engine Type
Combustion
Number of Engines
1
Engine Power
50 HP
Engine Model
Austro Engine AE50R

Autopilot & Control Sytems

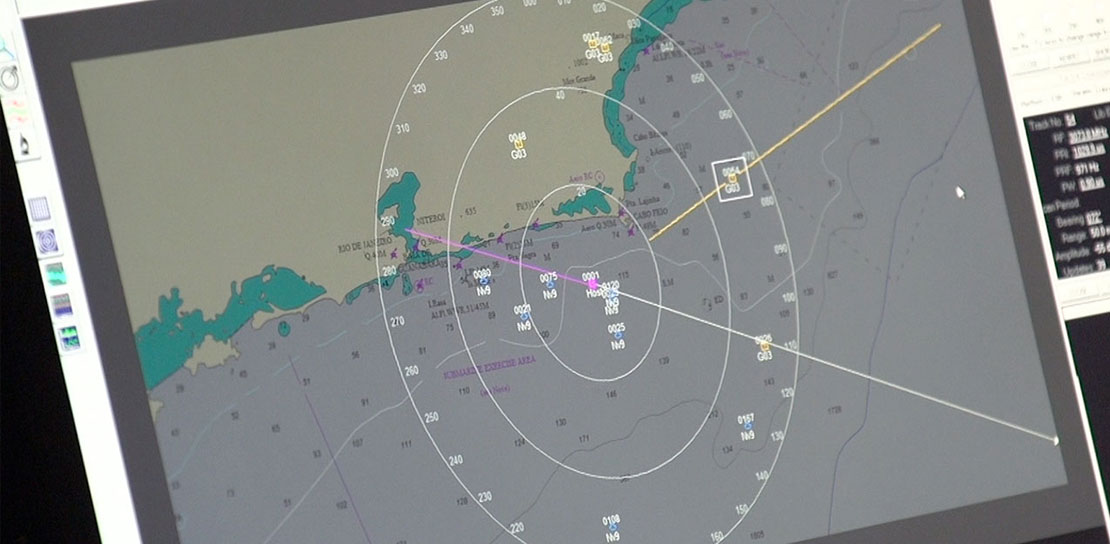

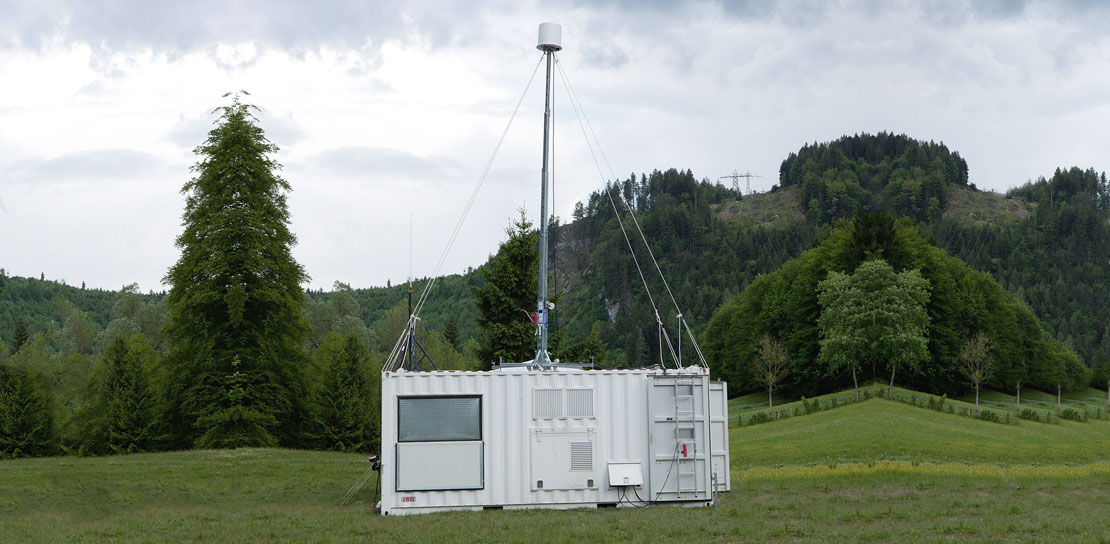

Ground Control Station

Ground Control Station (GCS)
Yes
GCS Dimensions
6060 mm x 2440 mm (239" x 96″)
Portable GCS
No

Payload & Sensors

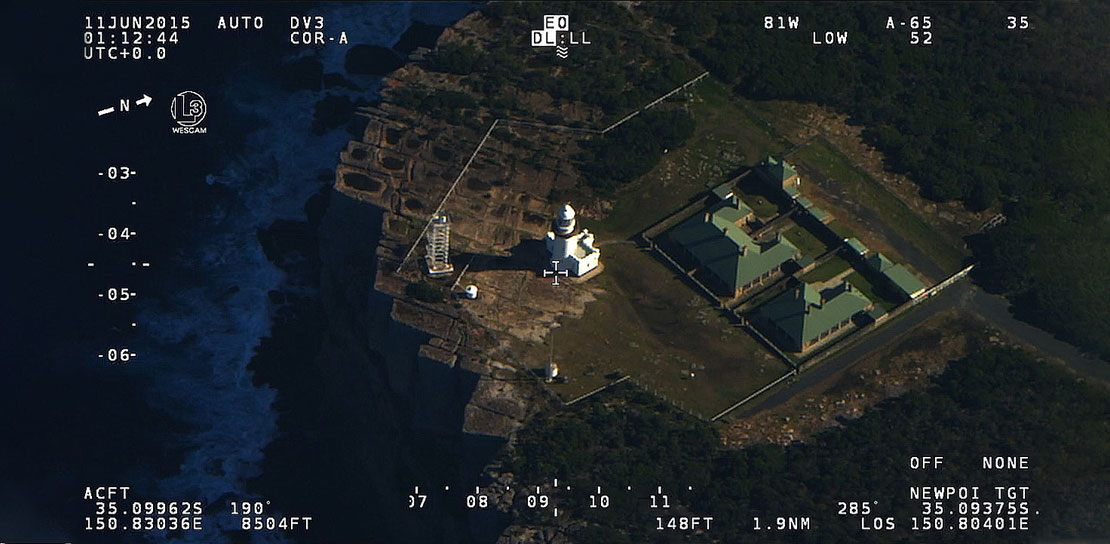

Front View Camera
EO/IR camera
Gimbal
Electro-Optical/Infrared (EO/IR)
Sensor Type

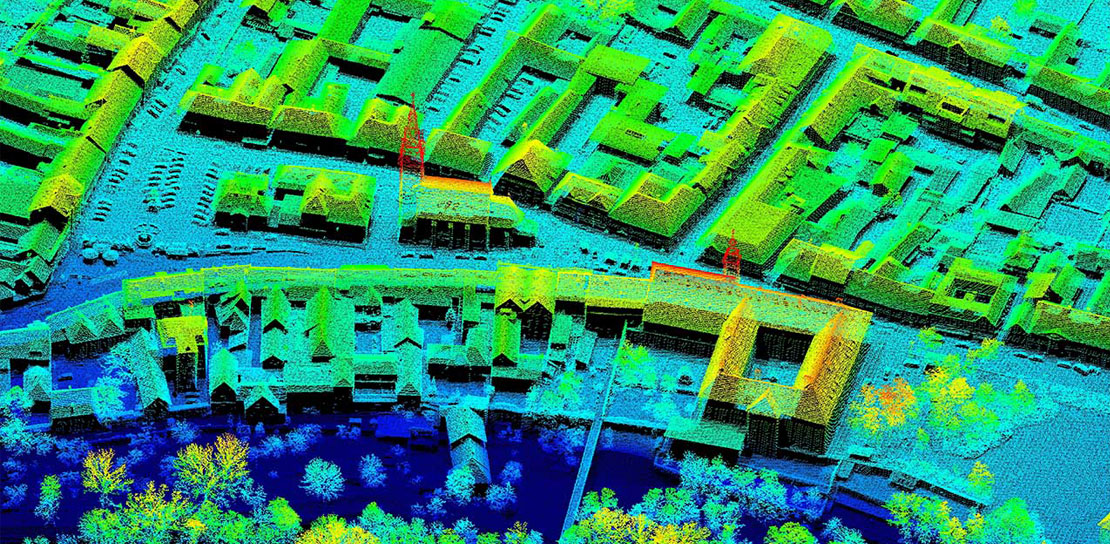

EO, IR, LIDAR

Additional Info

UAV Storage / Transportation
20′ Container
Battery Type
Battery SBS8
Container / Storage Box for the UAV
No
Call for Price
Condition New
Type VTOL
Mission Type Multi-Role
Year of Manufacture 2020
